multi instrument amplifier Schertler Model: ROY X Wood Amp 450W

Schertler Roy X Dark Wood multi-instrument amplifier

Roy X represents the state of the art in Swiss amplifier design and reflects all the needs of the user. This versatile 7-channel combo amplifier system offers a significantly improved power amp and speaker section as well as a crossover filter network with a limiter. Roy X offers 450 W (124 dB SPL) of dual amplified power. It is equipped with a 1" dome tweeter and two 8" woofers and has a 2-way bass reflex design.

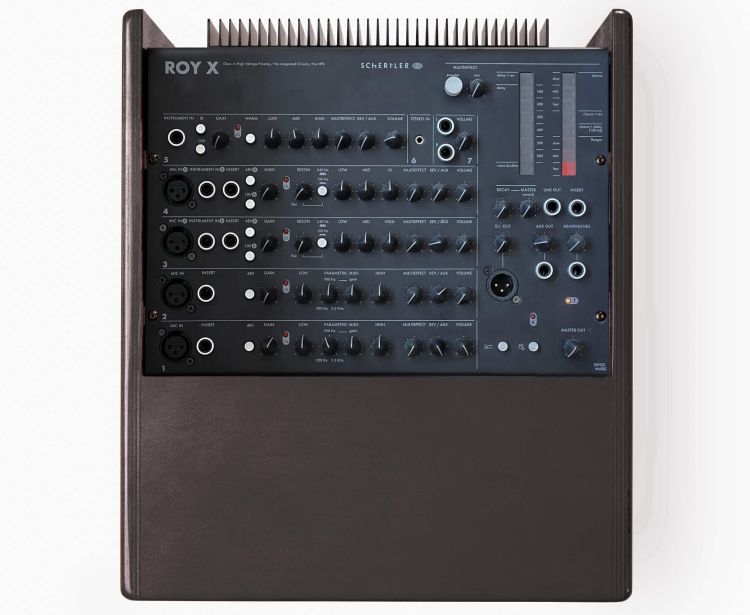

Roy X is very effective as a stand-alone, portable system for soloists or small groups. The system can accommodate various microphone/instrument combinations and offers comprehensive mixing capabilities for easy stage setup. The master section includes both a spring-like reverb with decay and a digital multi-effect (on a separate bus). A headphone preamp provides a convenient monitoring option. Roy X is available in a wood or anthracite finish. Schertler amplifiers feature a high-end Class A preamplifier without integrated circuits and without negative feedback.

• Weight 22.2 kg
• Dimensions (LxDxH) 35.7 x 41.5 x 51 cm
• Frequency response (@ +/-3dB) 40 Hz to 20 kHz Sensitivity (1W/1m) @1 kHz 95 dB
• Power 450 W - Class-D SPL Max 124 dB
• Speaker 1" Horn Tweeter, 2x 8" woofer
• Enclosure 15 mm birch BB laminated system - Bass reflex format - Two way
• Bi-amp Mic In connection XLR, sensitivity -52 dB, impedance 4.7 kΩ
• Instrument In connection 1/4" Jack unbalanced, sensitivity -47 dB, impedance 820 kΩ
• Stereo In connection 1/8" Jack stereo, sensitivity -10 dBu, impedance 40 kΩ
• Insert On Master + channels 1-4
• Line Out connection 1/4" Jack, level 0 dBu
• DI Out output XLR, level -∞ to +6 dBu, impedance 180 Ω
• Aux Out output 1/4" Jack unbalanced, level 0 dBu, Impedance 180 Ω
• Headphone output 1/4" Jack stereo
• Phantom power (nominal) 48 VDC (XLR) / 10 VDC (Jack)
• Effect Spring reverb Digital reverb with decay + parallel multi-effect with 16 presets
• Preamp Class-A, without negative feedback
• Footswitch On multi effect and digital reverb
• Available in Dark Wood or Anthracite finishes
