BeyerDynamic Mikrofon TG D57 for: Percussion Instruments

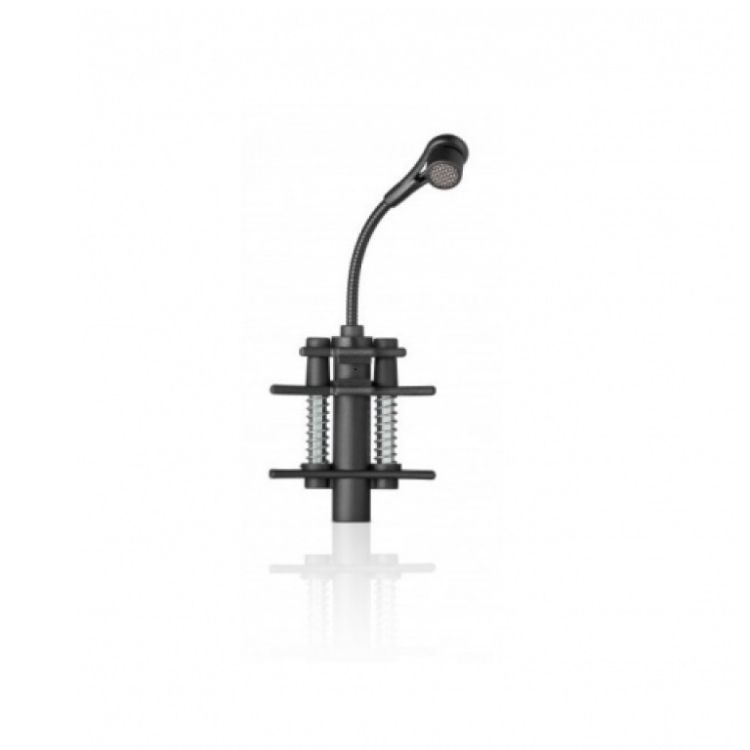

BeyerDynamic Drum / Percussin Microphone TG D57

The traditional German company BeyerDynamic, with over 100 years of experience and a vibrant, inspiring history full of music, sound and communication, inspires professional users worldwide. The audiophile products with detailed resolution and very transparent sound are developed, designed and manufactured in Germany. More than 400 highly qualified employees manufacture the majority of the products by hand.

• Conversion principle: Condenser (back electret)
• Working principle: Pressure gradient receiver
• Directional characteristic: Cardioid
• Mid-field transmission range: 20 - 20.000 Hz
• Transmission range far field (distance 1 m): 35 - 20,000 Hz
• Field leakage transmission factor: 5 mV/Pa (-46 dBV) ±2.5 dB
• Nominal impedance: 200 O
• Nominal terminating impedance: = 1 kO
• Max. Maximum sound pressure level at 24 V and 48 V phantom power: 140 dB
• Noise-to-noise ratio: 59 dB (OBIEXP) CCIR; Q-Peak (CBIEXP) 70 dB (OBIEXP)A; RMS(CBIEXP)
• Equivalent sound pressure level: 35 dB (OBIEXP)CCIR; Q-Peak(CBIEXP) 24 dB (OBIEXP)A; RMS(CBIEXP)
• Power supply: Phantom power: 12 - 48 V(recommended: 48V)
• Current consumption: 4.7 mA
• Connection: XLR plug, 3-pin, male
• Clamp (W x H): 85 x 118 mm
• Length of gooseneck: 72 mm
• Weight: approx. 145 g
